Abloy Electric Lock Package 1E

Description

Abloy Electric Lock Package 1E - EN179 Compliant

You can use this package with wood or metal doors with handle operation and ensure the inside handle always operates and the outside handle is controlled and activated on a signal from the access control system; however, the key will always override at all times on the outside.

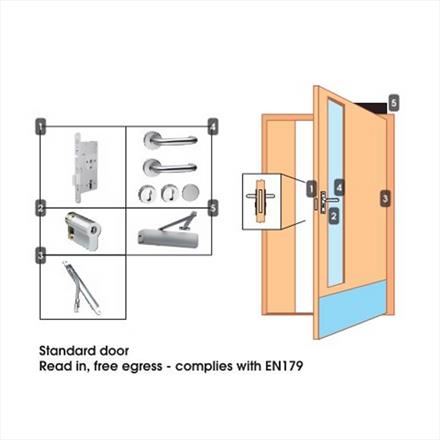

ABLOY's Package 1E includes:

• EL560 solenoid lock
• CY326 single cylinder - DIN Europrofile
• EA280 concealed door loop
• 60-0319-SSS handle set

Technical Specifications:

• Operating voltage: 12V DC to 24V DC stabilised (+15%-10%)
• Current draw: 12V DC 350mA max 24V DC 250mA max
• Lock backsets available: 65mm (standard), 55mm, 60mm, 80mm, 100mm
• Monitoring: RQE on the inside handle, bolt position, cylinder operation.

Standards:

• EN179 when used with the correct lever handles
• EN12209
• EN1634-1
• EN61000-6-1
• EN1303 (cylinder)
• EN14846
