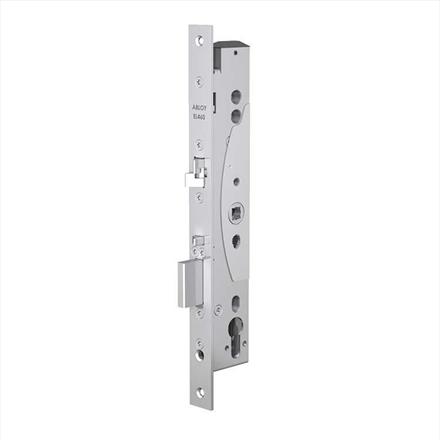

Abloy EL460 Handle-Controlled Solenoid Electric Lock
Description
Abloy EL460 Handle-Controlled Solenoid Electric Lock - 30mm backset
Features:
- 30mm backset.
- Handle controlled.
- For narrow style doors.
- With anti-friction bolt.
- Outside handle controlled.
- Meets EN1125 when used with 990001-SE panic bar.
- Inside handle operates at all times.
- Easily reversible trigger bolt, suitable for all hands of door.
- Quick change fail locked to fail unlocked.
- Deadbolt and anti-friction bolt deadlock when door closes.
- Meets EN179 (EL460 only) for emergency exit doors and EN1634-1 for fire resistance when used with correct exit hardware.
- Tested to mechanical resistance EN12209.
- Key override at all times.
Monitoring:
- Request to exit (RQE) on inside handle (EL460).
- Bolt position.
- Door position.
- Cylinder operation.
Fitting:
- For wooden doors please add 10mm to lockcase height above fitting to allow for cable socket and plug.
- For wooden doors extension will be required.

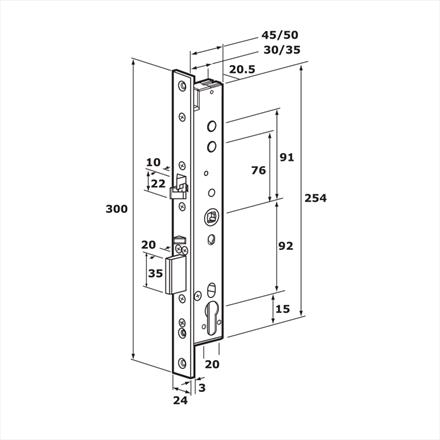

Technical Specification:
- Operating voltage +15%, -10% 12V DC to 24V DC stabilised
- Current max 12V DC 350mA, 24V DC 250mA
- Temperature (ºC) -20 to +60
- Backset (mm) 30
- Follower (mm) 9
- Split spindle (mm) 8
- Forend finish Satin Stainless Steel
