Abloy EL560 Solenoid Electric Lock

Description

Abloy EL560 Solenoid Electric Lock - 55mm backset

Features:

• 55mm backset.
• For wooden or metal doors.
• Outside handle controlled.
• Meets EN1125 when used with 990000-SE panic bar.
• Outside handle operates when engaged by a solenoid.
• Inside handle operates at all times.
• Easily reversible trigger bolt, suitable for all hands of door.
• Quick change fail locked to fail unlocked.
• Deadbolt and anti-friction bolt deadlock when door closes.
• Meets EN179 (EL560 only) for emergency exit doors and EN1634-1 for fire resistance when used with correct exit hardware.
• Tested to mechanical resistance EN12209.
• Key override at all times.

Monitoring:

• Request to exit (RQE) on inside handle (EL560).
• Bolt position.
• Door position.
• Cylinder operation.

Fitting:

• Please add 10mm to the case depth to allow for cable socket and plug.

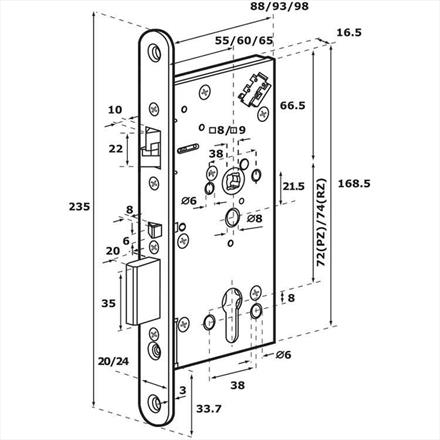

Technical Specification:

• Operating voltage +15%, -10% 12V DC to 24V DC stabilised
• Current max 12V DC 350mA, 24V DC 250mA
• Temperature (ºC) -20 to +60
• Backset (mm) 55
• Forend (mm) 24
• Follower (mm) 9
• Forend finish Satin Stainless Steel
