Galeo Digicode? Remote Electronics Keypad Kit With Electric Strike (100 User)

Description

Galeo Digicode® Remote Electronics Keypad Kit With Electric Strike (100 User)

This kit includes:

• 1x GALEO Illuminated Digicode® keypad 1 output.
• 1x Fail Secure Electric Strike Kit, 12v Ac/dc, Flush & Surface Kit - Grey.
• 1x Exit button for internal use - 83mm x 83mm. Manufactured in sturdy plastic, ideal for mounting on standard UK back-boxes where the traffic is light to medium. C/W surface box 1 gang.
• 1x 12/24v Transformer 90x55x65mm. Primary voltage 230V ± 10 %, 50/60 Hz. Standard EN 61558-2-8. Power 24VA. Secondary 24V - 2 x 12V with midpoint. DIN rail: Number of modules: 3. Class II.

Overview:

• Surface mount.
• Free voltage.
• Mounting with Torx® screws.
• Completely sealed with epoxy.
• PCB of remote electronics protected with a varnish coating.
• Audible and visual feedback.
• Input Voltage: 12/24v AC or 12/48v DC.
• Consumption: 30 to 100mA.

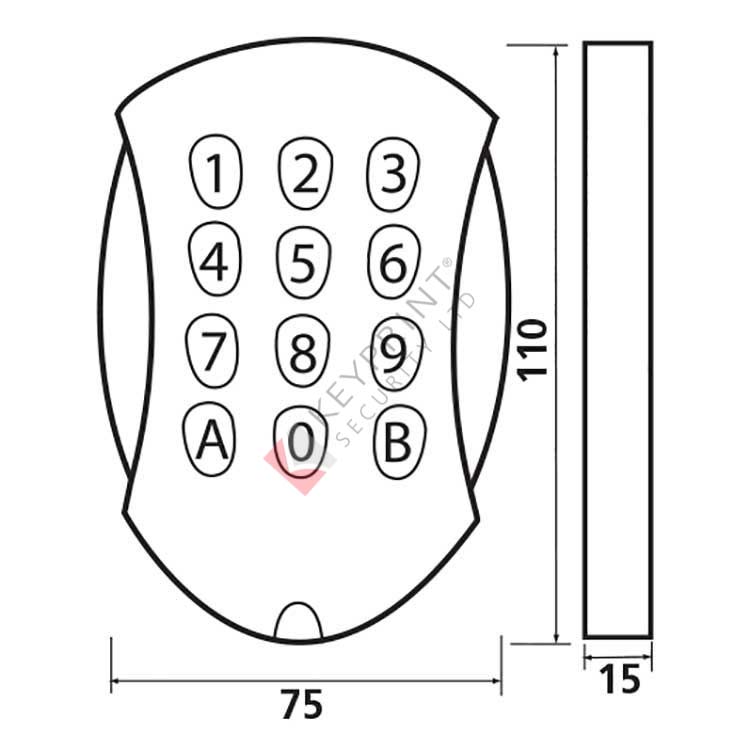

• Dimensions: 110 x 75 x 15mm.
• Temperature: -25°C to +70°C.
• Salt spray tested.
• IP Rating: 64.
• High resistance to vandalism.
