PROMI-500 Stand-Alone Proximity Kit With Electric Strike (500 User)

Ref	Name
AC-KPK-KIT06R	PROMI-500 Stand-Alone Proximity Kit With Electric Strike (500 User)

Description

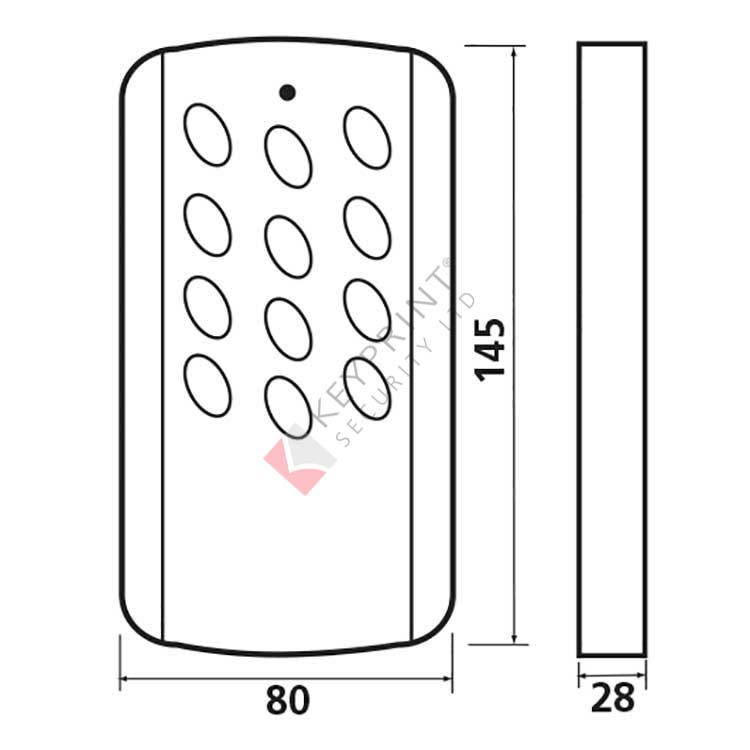

1x Door stand-alone controller/proximity reader 500 users.
1X Fail Secure Electric Strike Kit, 12v Ac/dc, Flush & Surface Kit - Grey.
1x Exit button for internal use - 83mm x 83mm. Manufactured in sturdy plastic, ideal for mounting on standard UK back-boxes where the traffic is light to medium. C/W surface box 1 gang.
1X 12/24v AC Transformer 90x55x65mm. Primary voltage 230V ± 10 %, 50/60 Hz. Standard EN 61558-2-8. Power 24VA. Secondary 24V - 2 x 12V with midpoint. DIN rail: Number of modules: 3. Class II.
10 x proximity key fobs.

Self-contained electronics.
1 master code 5 digits.
3 operating modes:
   - Card + PIN (double security),
   - Card only,
   - Card or PIN.
Input Voltage: 12v ac/dc.
Consumption: 250mA.
Temperature: -10°C to +70°C.
12-key keypad/proximity reader.
Output: 2 relays NO/NC contacts 3A/125V AC one of which is to open the door and one to report the alarm.
Programmable relay output (1 to 99 seconds).
Optional: 1 auxiliary reader remotely installed up to 50m.
Audible and visual feedback (buzzer & LED).
IP Rating: 53.
