Union CE3F Rack & Pinion Door Closer

Description

Union CE3F Rack & Pinion Door Closer

CE Marked in all 3 positions for timber and metal fire doors, the Union CEF3 fixed size is the solution you need to provide your customers with a first-rate door closer for an impressive variety of applications.

Quick and easy to install, you will also enjoy specific templates for each mounting position that eliminate incorrect installations. It also reduces the number of parts and products you need to stock because it uses the same footprint and fixing dimensions as most popular UK door designs.

Benefits:

• 10-year guarantee – remarkably robust yet provides incredible value for money for you and your customers.
• Versatile and extremely secure: you'll enjoy the only door closer in its class to be CE Marked in all 3 positions for timber and metal fire doors.
• Everything included – it comes with all components you need to install it safely in all three mounting positions.
• Easy to install:

• You can quickly fit it because each mounting position comes with specific templates.
• Uses the same footprint and fixing dimensions as most popular UK door designs – you can retro fit it with minimum effect.
• Non-handed design which provides flexibility – it reduces the number of parts you need to stock.

• Easy to adjust – you can easily install and adjust the CEF3 in multiple applications thanks to the adjustable arm
• Easy to set up – you can easily set up the door opening and closing.
• No compromise on accuracy - you can accurately set up door opening and closing because speed and latch controls are side mounted for convenient access.
• Individual installation videos available to you.

Specification:

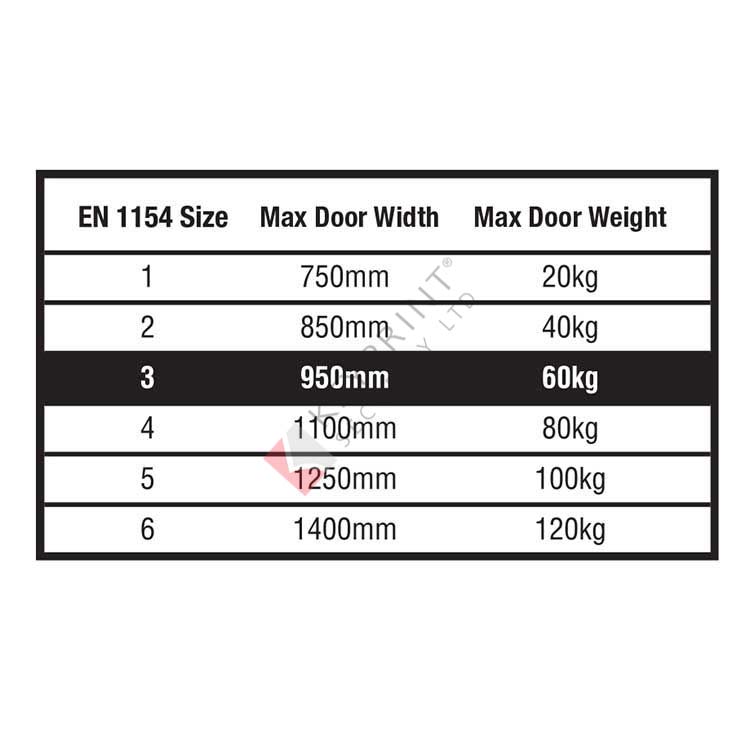

• Fixed size 3 rack and pinion door closer. Maximum door width 950mm EN size 3. Maximum door weight 60 kg.
• 130° maximum angle of opening (controlled closing).
• Adjustable closing speed from 130° open to 15° open.
• Adjustable latch action for final 15°.

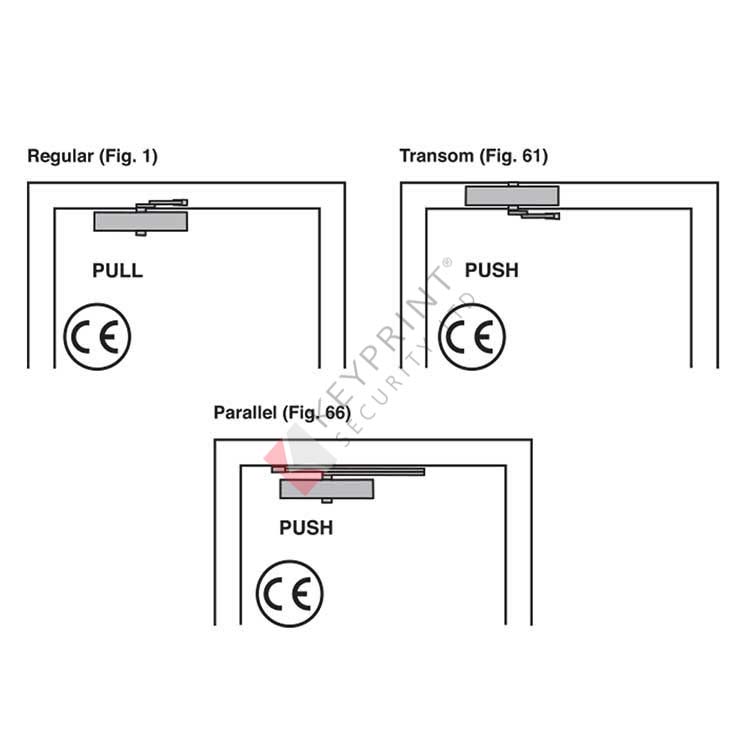

• Adjustable arm set for regular, transom and parallel arm installation.
• Additional bracket included for parallel arm mounting.

Finish:

• Silver finish - you can install it in a wide variety of applications because it blends in with any door any other traditional door hardware.

Standards:

• CE Marked to EN 1154 in all 3 mounting positions.
• Fire rated for timber (FD120) and metal (FD240) fire doors.
• Certifire approved.

Watch how to install it (regular position):
