Xhorse Dolphin XP-008 Key Cutting Machine

Description

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit Double Bit Keys

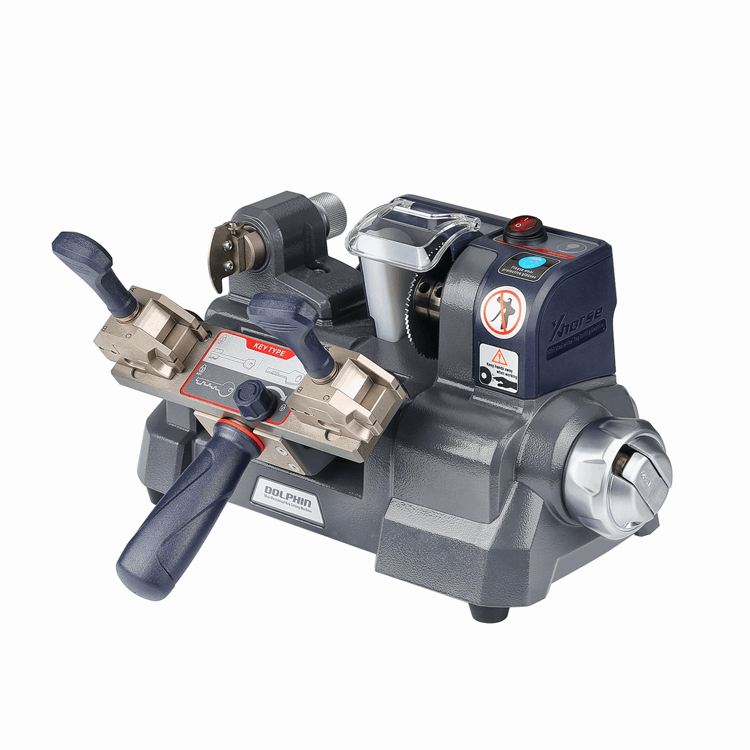

Dolphin XP-008 is Xhorse newly-released mini mechanical key-cutting machine, designed for bit/pump and safe deposit box keys.

• Exceptional Design. Ergonomic design brings users an extraordinary working experience. Dolphin XP-008 comes with an LED light, helping users work in different scenes with ease.
• Users can complete the lateral cutting feed by simply turning the handwheel which can be entirely concealed inside after duplication.
• Efficient Cutting Guaranteed. The spindle speed reaching 1050rpm guarantees high efficiency in cutting. More importantly, it helps minimize the wear and tear of the cutter and ensures high-quality cutting results.
• Innovative Micro-adjustment Base. The all-direction micro-adjustment base consisting of a key cutting guide and micro-adjustment knob is innovatively developed, making it possible to achieve ultra-high precision duplicating.

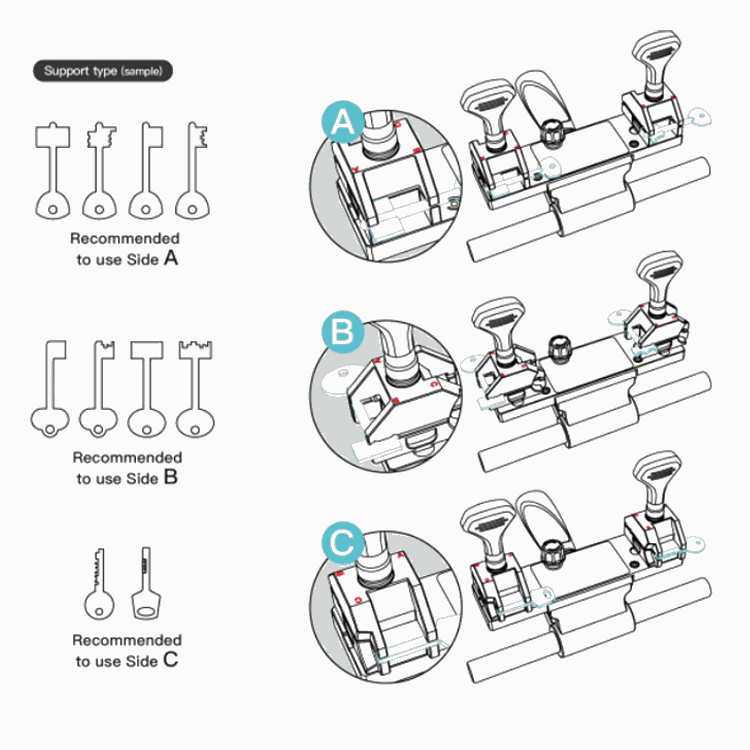

• Flexible Clamps. The machine features a wide clamp space reaching 115mm, providing a more flexible experience to clamp different keys with no limits to the stem length. XP-008 also offers a wide rotation range so the rotation bench can rotate 0~45 when turning the handle. This makes sure that keys with different titled angles can be perfectly cut.

Technical Specifications:

• Input Frequency: 47-63Hz.
• Spindle Speed: 1050rpm.
• Travel of Table: 46mm.
• Clamp Rotation Angle: 0-45°.
• Machine Dimensions: 305x185x200mm.
• Package Dimensions: 435x370x315mm.
• Power: 145W.
• Input Voltage: 12V/DC.
• Motor Torque: 1.32Nm.
• Net Weight: 10.8kg.
• Gross Weight: 12.5kg.
