Silca DUO Multi Purpose Key Cutting Machine

Description

Silca DUO Multi-Purpose Key Cutting Machine

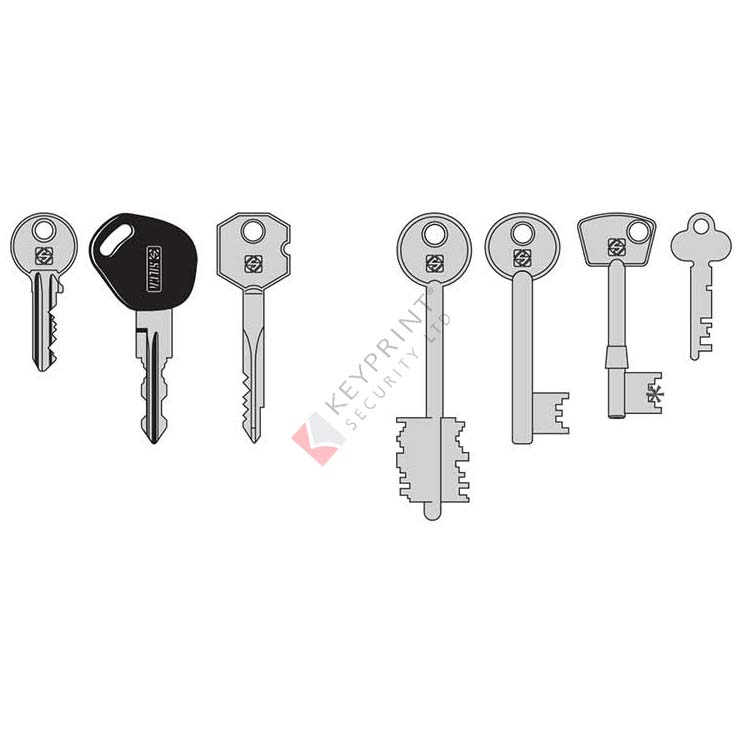

Silca Duo introduces an innovative concept of key-cutting machine. A double carriage makes it possible to cut flat keys for cylinders and vehicles, cruciform keys, bit and double bit keys and mailbox keys. Solid, reliable, and accurate is made in long-lasting materials.

Features:

• Cutting of various key types
• Reliable and solid
• Long-lasting components
• Compact dimensions
• Onboard lighting
• Flared Cuts: the special tilting mechanism provided by the combination of a dedicated shaft and carriage movement makes it possible to make excellent flares on bit and double bit keys.
• Carriage Movement: provided with an innovative release system to allow working with a free-moving or regulated carriage
• Cylinder keys carriage: four-sided revolving clamps
• Bit and double bit keys carriage: two/three-sided revolving clamps
• Protection of all internal moving parts from swarf intrusion
• Operator safety: mobile cutter safety shield, cut-out switch that triggers automatically if power fails
• Tool holder
• Swarf tray
• Brush with ergonomic cover
• Machine built in compliance with the CE Directives

Technical:

• Dimensions: 510 x 450 x 280 mm (WxDxH)
• Electrical properties: 230V-50Hz / 110V-60Hz
• Motor: One-speed single phase
• Net weight: 23 Kg
