Silca DUO Plus Multi Purpose Key Cutting Machine

Description

Silca DUO Plus Multi-Purpose Key Cutting Machine

A double carriage makes cutting flat keys for cylinders and vehicles, cruciform keys, bit and double bit keys, and mail box keys possible.

Solid, reliable, and accurate is made in long-lasting materials.

The specially designed clamp for bit and double bit keys is used to cut not only a large number of these types of keys, but also special keys such as Abus® and Abloy® type keys without the need for accessories.

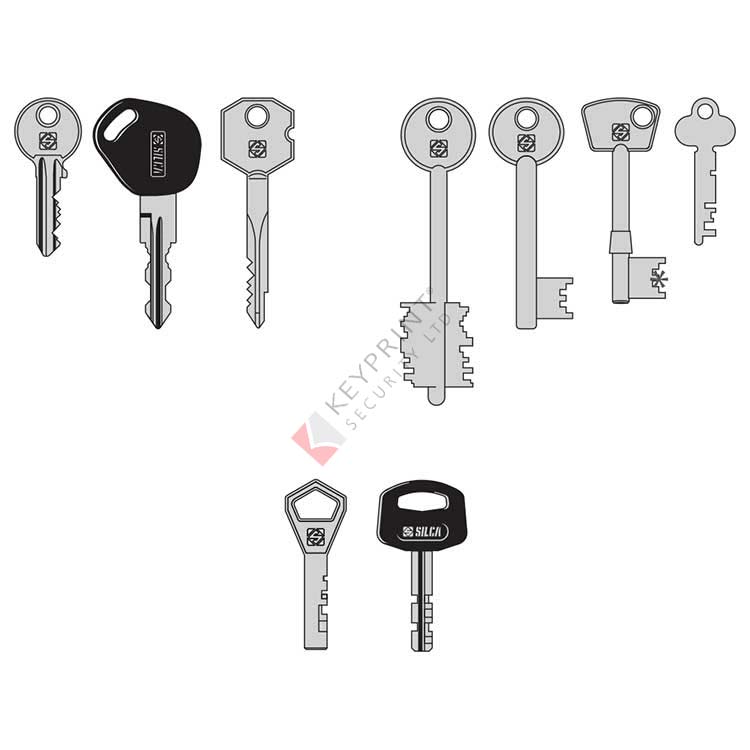

Mechanical key-cutting machine for making copies of:

• flat cylinder and vehicle keys and cruciform keys (left-hand carriage)
• bit and double bit keys, post box keys and special keys such as Abus® and Abloy® type keys (right-hand carriage)

Features:

• Cutting of various key types
• Reliable and solid
• Long lasting components
• Compact dimensions
• On board lighting
• Flared Cuts: the special tilting mechanism provided by the combination of a dedicated shaft and carriage movement makes it possible to make excellent flares on bit and double bit keys.
• Carriage Movement: provided with an innovative release system to allow working with a free-moving or regulated carriage
• Cylinder keys carriage: four-sided revolving clamps
• Bit and double bit keys carriage: two/three sided revolving clamps with special gripping system for Abus® and Abloy® type keys
• Operator safety: mobile cutter safety shield, cut-out switch that triggers automatically if power fails
• Protection of all key cutting machine internal moving parts from swarf intrusion
• Tool holder
• Swarf tray
• Brush with ergonomic cover
• Machine built in compliance to the CE Directives

Technical:

• Dimensions: 510 x 450 x 280 mm (WxDxH)
• Electrical properties: 230V-50Hz / 120V-60Hz
• Motor: One-speed single phase
• Net weight: 23 Kg
