Silca IDEA Electronic Mortice Key Cutting Machine

Description

Silca IDEA Electronic Mortice Key Cutting Machine

Convenient lease plans are now available to you. Login with your account details to access the product files and check how you can easily spread the payment of your machine.

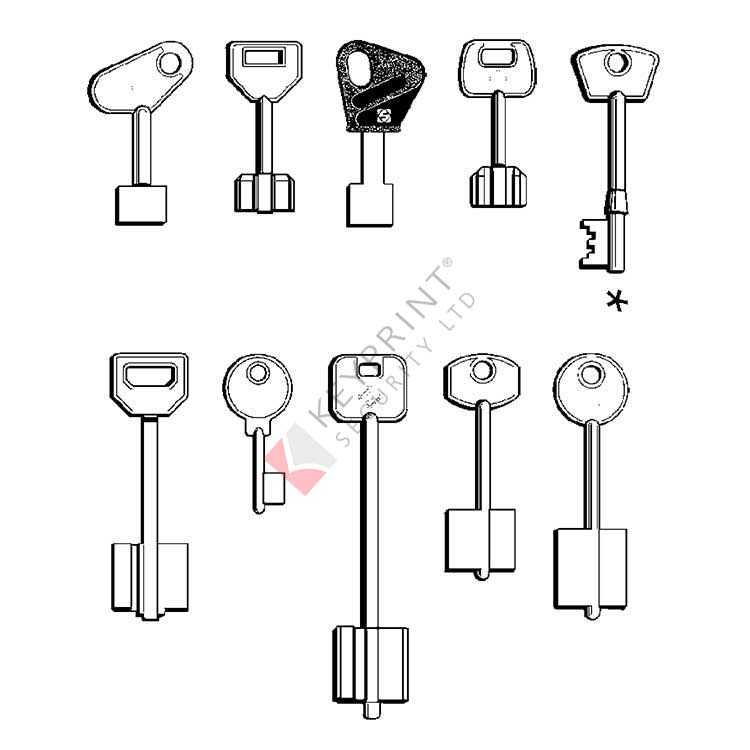

Electronic key cutting machine for code cutting and copying bit and double bit keys, pump keys and ‘English’ keys (with shoulder). Idea carries out a wide range of operations automatically, ensuring precision within hundreds of millimetres and speed for the cutting cycle of any type of key.

• An innovative gauging system by electrical contact which makes it possible to identify the correct dimensions of the key automatically with absolute precision.
• Automatic axes gauging.
• Absolute precision in reading the key, thanks to the patented laser optical reader.
• Automatic optical reader gauging.
• Universal clamp, 360° rotation, used for cutting both sides of the key bit.
• Idea Stand-Alone - The machine memory holds over 300 different cutting and decoding systems, and memorises over 1.000 cutting systems.

Technical

• Cutter motor: single phase
• Power supply: 230V/50Hz
• Clamp: 360° rotating universal clamp, controlled by magnetic positioning sensor
• Movements: on 3 axes, controlled by preloaded ball screws activated by step motors on recti?ed roller guides
• Dimensions: Width: 500 mm, Depth: 500 mm, Height: 420 (with raised shield: 650 mm)
• Weight: 46.4 Kg

* Only for shoulder stop keys.

Installation and training provided.
