Silca Matrix Pro Dimple/Laser Key Cutting Machine

Description

Silca Matrix Pro Dimple/Laser Key Cutting Machine

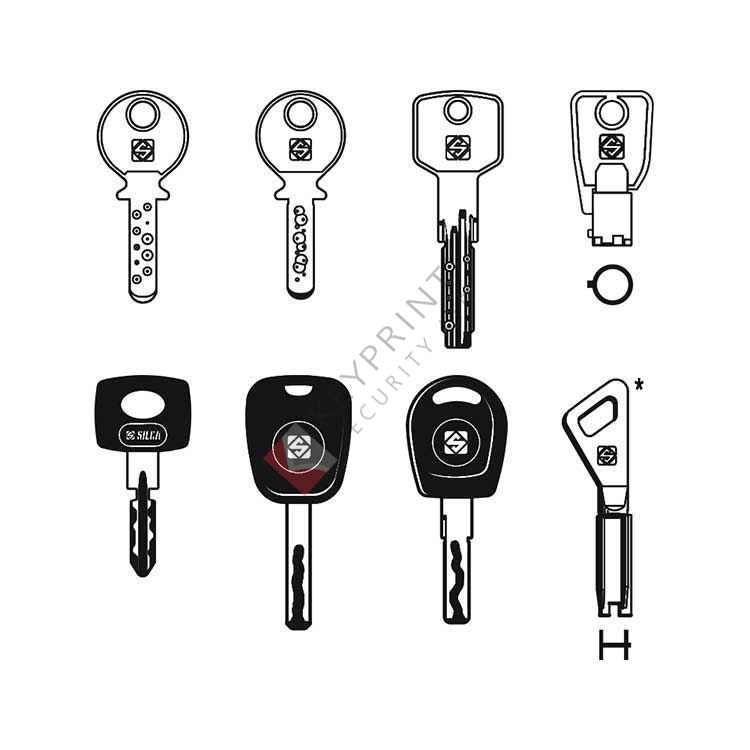

Matrix Pro is a key-cutting machine that provides top quality performance and precision in duplicating dimple keys with flat or inclined cuts, laser type keys, Fichet® type keys and tubular keys.

• Clamps: Tilting clamps (0° +/- 45°) with four seats dedicated to optimum positioning of different types of keys: dimple keys with flat or inclined cuts (including Abus®, Bricard®, Cisa® key types), laser type keys (including HU66 key type), Fichet® type keys and tubular keys.
• Cutters: New HSS material and innovative design. Coloured plastic collar for easier reference identification (patent pending).
• Calibration: Electromechanical calibration system. Innovative keypad/display to facilitate calibration operations.
• Safety: Cutter motor activated by a micro-switch on the Z-axis lever for greater Operator safety, speed and efficiency.
• Protection: Wide safety shield designed to provide the Operator with maximum protection.
• Cutter securing and releasing mechanism Innovative and optimized tracer point and cutter securing and releasing mechanism for simple time-saving operations.
• Rollbar: Rollbar rest for the left hand: provides the Operator with ideal working conditions.
• Illumination: LED lights with automatic On/Off system activated by proximity sensors. (patent pending)
• Accessories area: Capacious pull-out unit for accessories, incorporated in the machine in an ideal position. Easily accessible area for accessories and keys.

Technical:

• Power supply: 230V 50/60Hz - 100V/120V 50/60Hz
• Cutter motor: Single phase 1 speed motor 230V 50/60Hz - 100V/120V 50/60Hz
• Cutters: Super Speed Steel (HSS)
• Dimensions: Width: 310 mm (12.20”) with max. lever encumbrance: 400 mm (15.75”) Depth: 400 mm (15.75”) Height: 470 mm (18.50”)
• Mass: 24,6 Kg (54.23 lbs)

* Keys cut with optional accessories.
