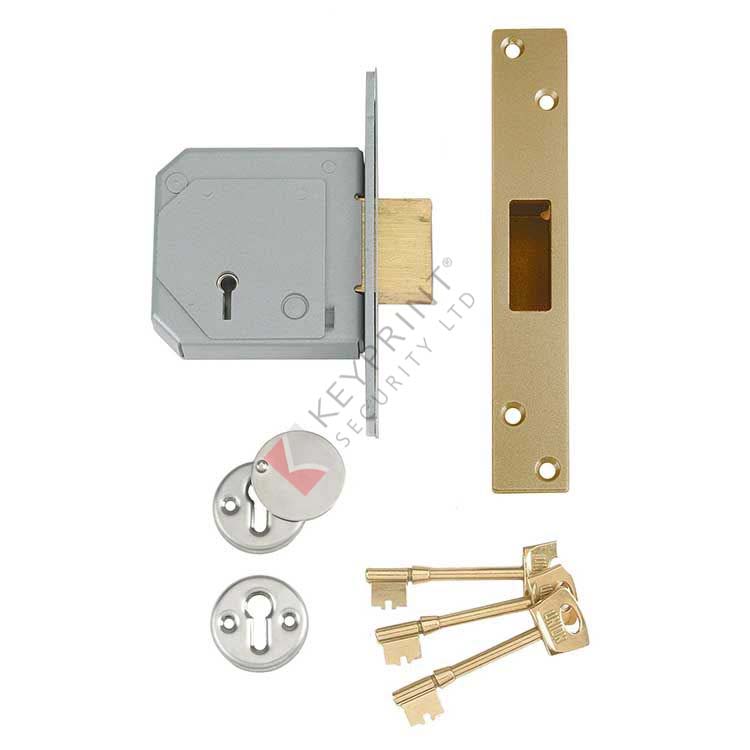

Union C-Series British Standard 5 Lever Mortice Deadlocks - Boxed

Description

Application

• For timber door hinged on the left or the right
• Keys are suitable for use on doors up to 50mm thick

Specification

• Deadbolt is locked or unlocked by key from either side
• Force resistant, anti drill, anti-pick and anti-saw security features
• Available with square forend and striking plate
• 14mm bolt throw
• Supplied with one plain escutcheon and one escutcheon with a cover plate, finished to match the faceplate/strike

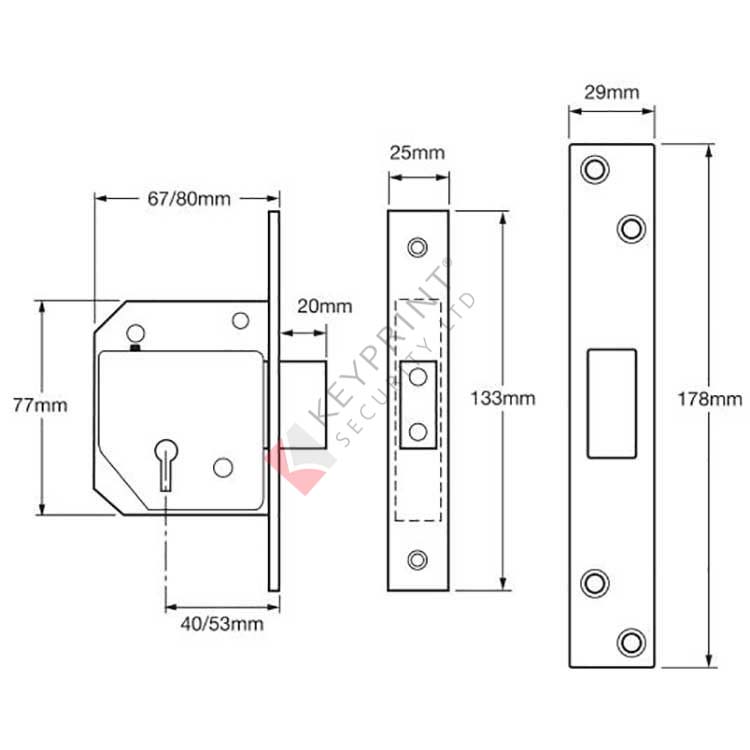

• Case Size: 67mm or 80mm
• Backset: 40mm or 53mm
• Case: Silver powder coat
• Forend: Stainless steel or brass
• Box Strike Assembly: Painted to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: na
• Follower: na
• Keying Groups: Standard differ or to pass. Not suitable for master keying
• Keys supplied: Standard differ supplied with 2 keys. For locks to pass please specify number of keys required
• Key Blank Number: B-K722
• Cut Key Number: B-5LC
• Rebate Kit: B-3G114R (13mm, 19mm and 25mm)

Finish

• PL- Polished Brass finish
