Union 2134E - British Standard 5 Lever Deadlocks - Blister

Description

Application

• For timber doors hinged on the left or right
• Keys are suitable for doors up to 54mm thick
• Specification
• 5 Lever BS 3621:2007
• Deadbolt locked or unlocked by key from either side
• Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
• 2134E can be keyed alike with 2234E
• NB: Not suitable for master keying
• Security box striking plate
• Anti-pick and anti-saw security features
• Available with square forend and locking plate

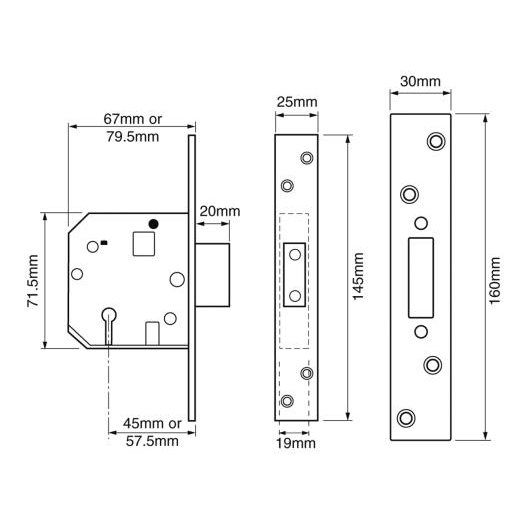

• Case Size: 67mm (2.5"") or 79.5mm (3"")
• Backset: 45mm or 57.5mm
• Case: Steel, red powder coat
• Forend: brass
• Striking Plate: Finished to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: n/a
• Follower: n/a
• Rebate Kit: 2954 (13mm, 19mm or 25mm)
• Keying Groups: May be supplied to pass or differ. Supplied with 3 steel nickel plated keys
• Key Blank Number: KB430

Standards

• Tested to BS 3621 : 2007
• 2 H 4 1 0 F 7 K D 0 V
• EN 1634-1 assessed for use on 60 minutes timber fire doors
• EC Certificate number: 0832-CPD-6038
