WKS Euro Profile Sash Lockcase - Narrow Style

RefName
CC-L-ES20WKS Euro Profile Sash Lockcase - 20mm backset
CC-L-ES25WKS Euro Profile Sash Lockcase - 25mm backset
CC-L-ES30WKS Euro Profile Sash Lockcase - 30mm backset

Description

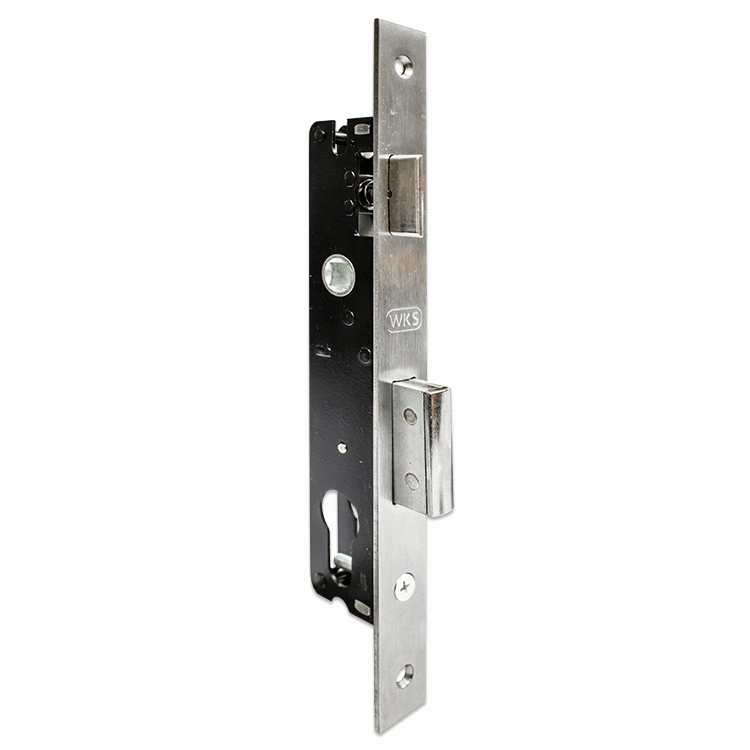

WKS Euro Profile Sash Lockcase - Narrow Style

These WKS Euro profile sash lockcases come in a range of sizes from 41mm case/30mm backset to 36mm case/20mm backset making them perfect for narrow-style doors in general.

The lockcases will accept a euro profile cylinder which allows for a wide range of keying arrangements and applications depending on which cylinders you decide to use. They have a reversible latch making them suitable for left and right-handed applications, both inward and outward opening.

They are supplied with a strike plate and two black plastic escutcheons to finish off the job.

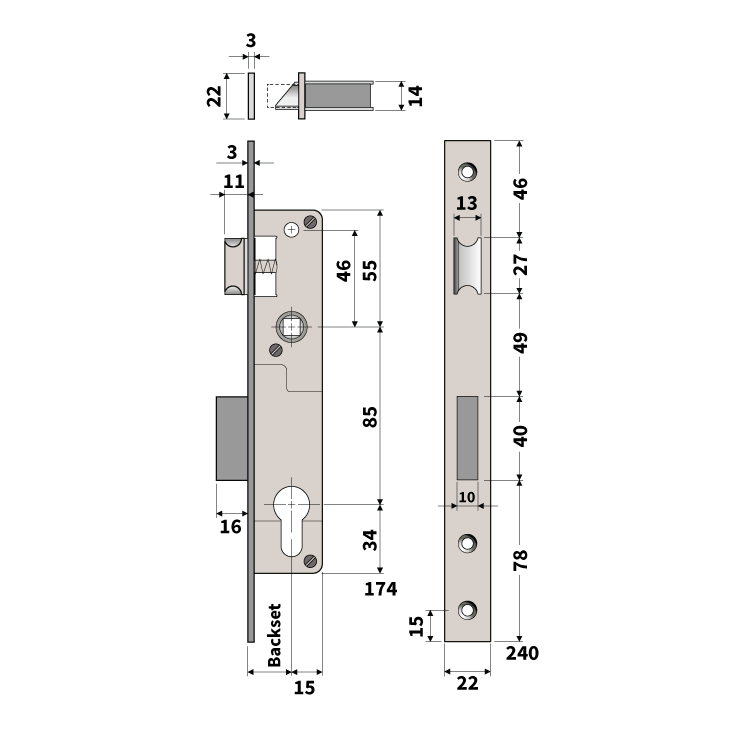

Sizes

  • Faceplate: 240mm x 22mm
  • Forend screw centres: 212mm
  • Case height: 155mm
  • Case depth: 16mm + backset
  • Centres: 85mm

Operation

  • Turn key to throw deadbolt
  • Latch withdraws via the key or handle

Notes

  • Supplied with two black plastic escutcheons and one strike plate
  • Stainless steel forend
