BRITON 5710 DIN Standard Euro Profile Deadlock Case 60mm Backset

Description

BRITON 5710 DIN Standard Euro Profile Deadlock Case 60mm Backset - Radius Forend

A heavy-duty, euro profile cylinder mortice deadlock suitable for use on doors without lever furniture that require locking.

Features

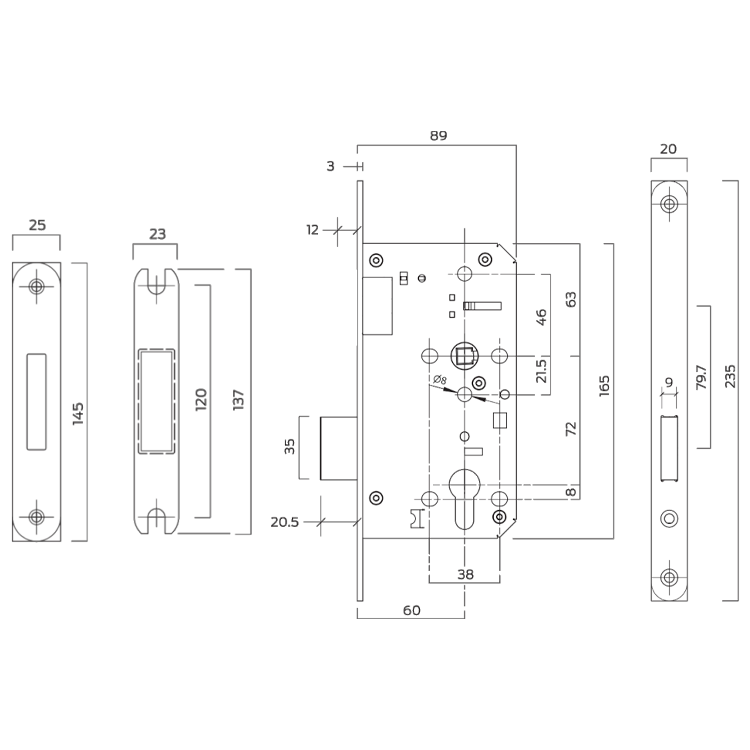

• 60mm backset and 72mm centre in line with guidance of BS 8300.
• 20mm single-throw deadbolt for fast egress and security in just one turn.
• Single-sided cylinder deadbolt thrown or withdrawn by key from either side depending on the cylinder selected.
• The guided cylinder screw accurately aligns the fixing to the cylinder.
• Available with a Grade 316 satin stainless steel round or square forend with matching strike plate.
• Compatible with Briton 4200 & 4700 Series door furniture.
• 10-year guarantee.
• Bolt through fixing holes to DIN 18251.

TESTING

• UKCA Marked to EN 12209 (1121-CPR-UK-AG7921).
• CE Marked to EN 12209 (2812-CPR-AG7924).
• Certifire Approved (CF741).
• Fire tested to EN 1634 on timber doors to achieve a 2-hour fire rating and 4 hours for metal doors (when fitted to timber doors the lock must be fitted in conjunction with the intumescent protection to ensure that the integrity of the door is maintained in a fire situation).
• 240 hours of corrosion resistance.
• Environmental Product Declaration in accordance with ISO 14025 and EN 15804.
