BRITON 5720 DIN Standard Euro Profile Sashlock Case 60mm Backset

Ref	Name
BT5720-60-R	BRITON 5720 DIN Standard Euro Profile Sashlock Case 60mm Backset

Description

A heavy-duty, euro profile cylinder mortice sash lock suitable for lockable doors with lever furniture to withdraw the latch bolt.

Features

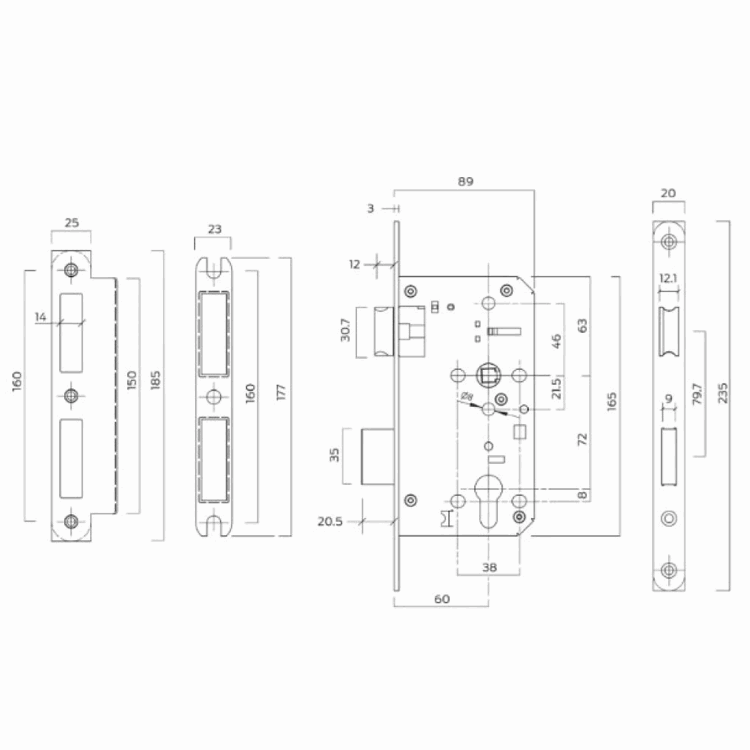

60mm backset and 72mm centre in line with guidance of BS 8300.
20mm single-throw deadbolt for fast egress and security in just one turn.
The latch bolt is operated by a lever handle and the deadbolt is operated by a cylinder.
Quick reversible latch without the need to dismantle the lockcase.
The guided cylinder screw accurately aligns the fixing to the cylinder.
Available with a Grade 316 satin stainless steel round or square forend with matching strike plate.
Compatible with Briton 4200 & 4700 Series door furniture.
10-year guarantee.
Bolt through fixing holes to DIN 18251.

TESTING

UKCA Marked to EN 12209 (1121-CPR-UK-AG7921)
CE Marked to EN 12209 (2812-CPR-AG7925).
Certifire Approved (CF741).
Fire tested to EN 1634 on timber doors to achieve a 2-hour fire rating and 4 hours for metal doors (when fitted to timber doors the lock must be fitted in conjunction with the intumescent protection to ensure that the integrity of the door is maintained in a fire situation).
240 hours of corrosion resistance.
Environmental Product Declaration in accordance with ISO 14025 and EN.
