ERA 2 Hookbolts & 2 Rollers Multi-Point Lock - 28mm Backset

Description

ERA High-Security Latch, Deadbolt, 2 Hooks and 2 Rollers Multi-point Lock

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward or Cego. This version features 2 roller cams for optimum compression and to minimise gaps and draughts. They are coupled with 2 small hooks for increased security and a good bi-directional grip into the frame.

Overview:

• One Latch, one Deadbolt, two Hooks and two Rollers.
• Single spindle, sprung lock box.
• Bi-directional throw of locking features for enhanced anti-jemmy feature.

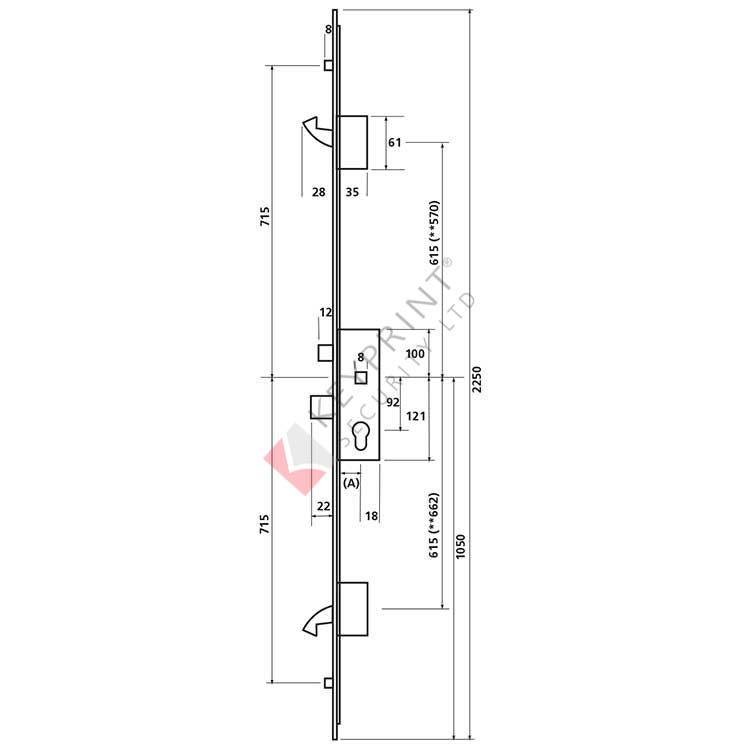

Specification:

• Case Height: 221mm
• Distance between rollers: 1430mm
• Distance between hooks: 1220mm
• Distance between hooks: 1220mm
• Backset: 28mm.
• Centres: 92mm.
• Spindle: 8mm.
• Height: 2250mm.
• Faceplate: 16mm.

Operation:

• Lift lever.
• Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).
• Remove latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return latch to correct position.

Please note that this is a collection-only item.
