ERA 4 Rollers Multi-Point Lock - 45mm Backset

Description

ERA 4 Rollers, 1 Deadbolt, 1 latch Multi-Point Lock - 45mm Backset

Overview:

• Non-handed lock mechanism with reversible sash bolt to minimise stock requirements
• Snib facility as standard on all locks
• Central brass deadbolt throws 22mm to prevent unauthorised entry
• Bi-directional throw of locking features
• Precision adjustable rollers for enhanced performance and weathersealing
• Accepts standard 92mm unsprung handles and euro profile cylinders (operates with BS and DIN specification cylinders and most other types of cylinder)
• Split spindle for lever/pad applications - choice of length available
• Easy-fit packer system for alternative profiles

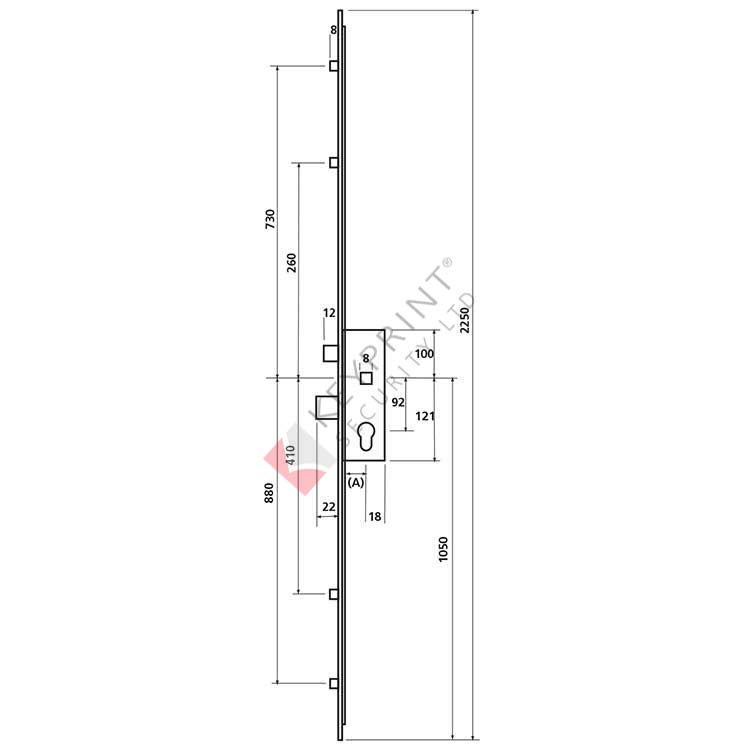

Sizes:

• Backset: 45mm.
• Centres: 92mm.
• Spindle: 8mm.
• Height: 2250mm.
• Faceplate: 16mm.

Please note that this is a collection-only item.
