ERA VECTIS Replacement Lock Gearbox - Latch and Deadbolt

Description

ERA VECTIS Replacement Lock Gearbox - Latch and Deadbolt

A replacement VECTIS gearbox mechanism to suit ERA, Laird and LSH VECTIS multi-point locks. This model is a 5 lever version of multipoint lock gearbox which gives additional protection against attack with its locking mechanism and anti-drill plates.

Overview:

• One latch and one deadbolt.
• No euro cylinder required. 5-lever lock mechanism and anti-drill plates for additional protection against attacks.
• For use on timber and uPVC doors.
• Supplied with three pre-cut keys.

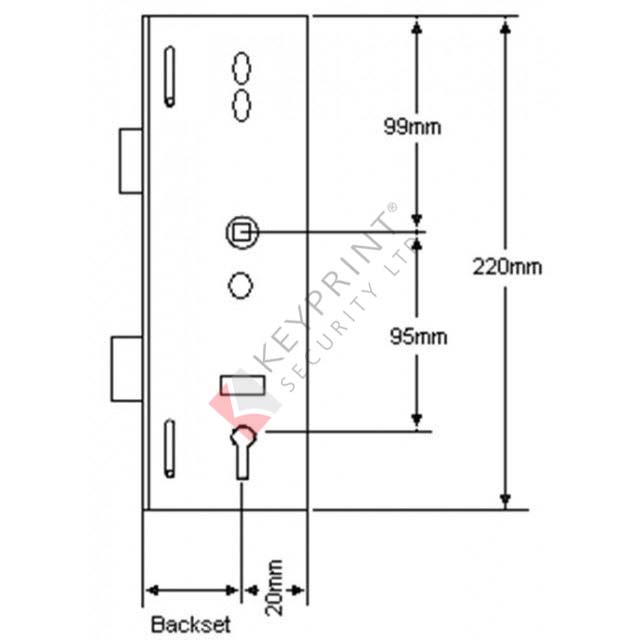

• Specification:
• Backset - 35mm or 45mm.
• Centres - 92mm.
• Length of case - 220mm.
• Spindle: 8mm Split spindle.

Operation:

• Lever/lever or split spindle.
• Suitable for right and left handed doors. The latch is easily reversed simply by unscrewing the two screws that hold the latch in place.
