Maco G-TS MK4 UPVC Lock Gearboxes

Description

Maco G-TS MK4 UPVC Lock Gearboxes

Maco G-TS MK4 UPVC Lock Gearboxes. Maco have used MK4 gearboxes on their new type door locks since approximately 2010.

It can’t be used to replace MK2 or MK3 gearboxes.

Overview:

• One latch and one deadbolt.

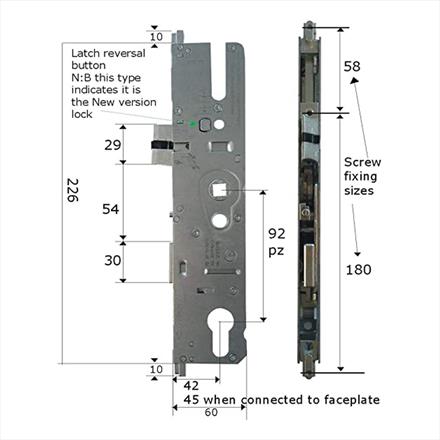

Specification:

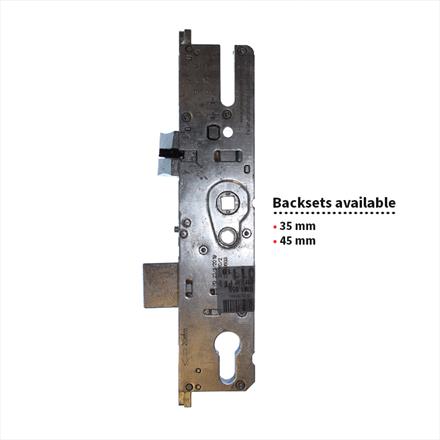

• Backset - 35mm or 45mm.
• Centres - 92mm.
• Length of case - 228mm.
• Spindle: Single 8mm.

Operation:

• Lift lever.
• Latch reversal: Push up the serrated button on the side of the case, remove the latch, reverse and reinsert
