Mila Replacement UPVC Lock Gearbox - 35mm Backset

Description

Mila Replacement UPVC Lock Gearbox - 35mm Backset

This Mila gearbox is the perfect solution to replace old-style Mila multipoint locks. Also known as Mila Coldseal and Swiftlocks, this is the version with an 8-mm single spindle, latch and deadbolt.

Overview:

• Single Spindle version with a latch and deadbolt. No faceplate supplied.
• You need to use M4 x 10mm self-tapping machine screws with this lock as screw holes are unthreaded.

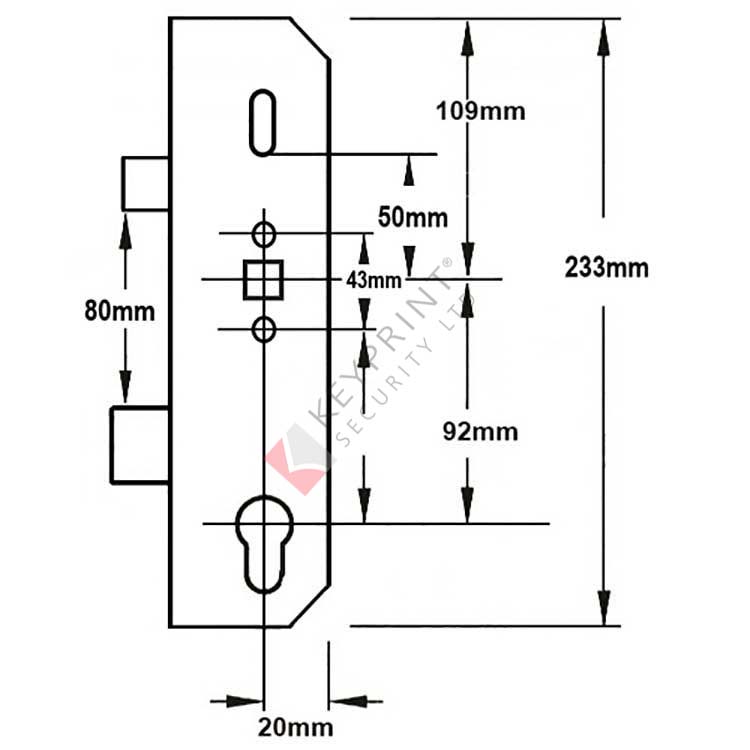

Specification:

• Backset: 35mm.
• Centres: 92mm.
• Case height: 233mm.
• Case depth: Backset + 20mm.
• Spindle: Single 8mm.

Operation:

• Lift lever.
• You can easily adapt the latch to fit both left and right handed doors: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.
